Disc-type gear pinion cutter with DIN 5482
2021-10-18 11:47:27
jiangxingTools
3328

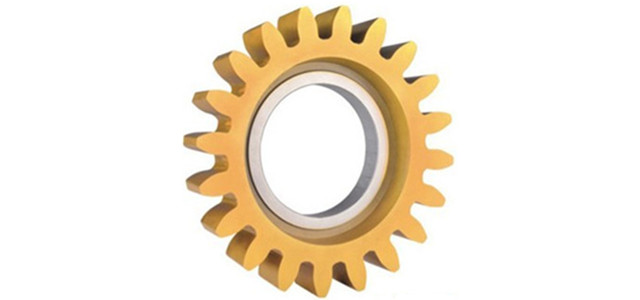

Disc-type gear pinion cutter with DIN 5482

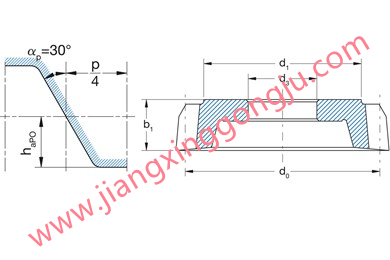

Tooth profile to DIN5482 standard
Module: m1.75-m2.25
Number of teeth: Z56-76
Pressure angle: 30°
Bore. 31.743mm,44.443mm
Please contac us for more details on disc type gear shaping cutters from us.
